"PROGRAM SILSILAH KELUARGA MENGGUNAKAN BINARY TREE"
#define WINDOWS
//#define LINUX
/** FAMILY TREE */
#include<iostream>
#include<string.h>
#include<stdlib.h>
using namespace std;
struct node
{
char name[50];
short int age,x; // x - height of node
bool g; // g- gender
node* fc; // Pointer to first child
node* ns; // Pointer to next sibiling
node();
void getData();
};
node::node()
{
fc=ns=NULL;
g=0;
strcpy(name,"");
age=x=0;
}
void node::getData()
{
char ch;
cout<<"\nName of the Person: ";
cin>>name;
cout<<"Age of "<<name<<": ";
cin>>age;
cout<<name<<" is (m/f): ";
cin>>ch;
if(ch=='m')
g=1;
}
class familyTree
{
public:
node* start;
familyTree();
node* traverseDown(node*,char[]); // Search functions
node* traverseRight(node*,char[]);
node* search(char[]);
void addSib(node*,node*); // Functions for adding new members
void addChild(node*,node*);
void addNew();
void find(); // Function to find relations
void show(node*); // Function to show details of particular person
void display(node*); // Function to display full tree
void destroy(node*); // Function to destroy full tree
void updateX(node*,int);
};
familyTree::familyTree()
{
start = NULL;
}
void familyTree::destroy(node* ptr)
{
node* temp = ptr;
if(ptr==NULL)
return;
while(ptr!=NULL)
{
destroy(ptr->fc);
temp = ptr;
ptr = ptr->ns;
delete temp;
}
start = NULL;
}
void familyTree::show(node* ptr)
{
char g[10];
strcpy(g,"Female");
if(ptr->g)
strcpy(g,"Male");
cout<<"\n\nName: "<< ptr->name <<endl;
cout<<"Age: "<< ptr->age <<endl;
cout<<"Gender: "<<g<<endl;
}
void familyTree::display(node* ptr)
{
// Traverses the full n-array tree by recursion to display names of all people
if(ptr==NULL)
return;
while(ptr!=NULL)
{
cout<< ptr->name <<endl;
display(ptr->fc);
ptr = ptr->ns;
}
}
void familyTree::updateX(node* ptr,int x)
{
// Traverses the full n-array tree by recursion and updates x value of all people
if(ptr==NULL)
return;
while(ptr!=NULL)
{
updateX(ptr->fc,x++);
if(ptr->ns!=NULL)
ptr->ns->x = x;
ptr = ptr->ns;
}
}
void familyTree::find()
{
/*
Same hight: Sibiling if same parent, else cousin
Difference of height = 1 - Parent if immediate, else uncule/aunt
Difference oh height = 2 - Grand parents if same link, elss idk
*/
char name1[50],name2[50];
cout<<"Enter names of two persons:\n";
cin>>name1>>name2;
node* ptr1 = search(name1);
node* ptr2 = search(name2);
node* ptr;
node* ptrk=ptr1;
node* ptrk1=ptr2;
switch(ptr1->x - ptr2->x)
{
case 0:
char s[50];
strcpy(s,"sister");
if(ptr1->g)
strcpy(s,"brother");
ptr = ptr1;
while(ptr!=NULL)
{
if(ptr==ptr2)
{
cout<<endl<<name1<<" is "<<name2<<"'s "<<s<<endl;
return;
}
ptr = ptr->ns;
}
ptr = ptr2;
while(ptr!=NULL)
{
if(ptr==ptr1)
{
cout<<endl<<name1<<" is "<<name2<<"'s "<<s<<endl;
return;
}
ptr = ptr->ns;
}
cout<<endl<<name1<<" and "<<name2<<" are Cousins";
break;
case 1:
char str3[50];
strcpy(str3,"daughter");
if(ptr1->g)
strcpy(str3,"son");
ptr2 = ptr2->fc;
while(ptr2!=NULL)
{
if(ptr2==ptr1)
{
cout<<endl<<name1<<" is "<<name2<<"'s "<<str3;
return;
}
ptr2=ptr2->ns;
}
strcpy(str3,"niece");
if(ptr1->g)
strcpy(str3,"nephew");
cout<<endl<<name1<<" is "<<name2<<"'s "<<str3;
break;
case -1:
char str[10];
strcpy(str,"mother");
if(ptrk->g)
strcpy(str,"father");
ptr = ptrk->fc;
while(ptr!=NULL)
{
if(ptr==ptrk1)
{
cout<<endl<<name1<<" is "<<name2<<"'s "<<str;
return;
}
ptr=ptr->ns;
}
strcpy(str,"aunt");
if(ptrk->g)
strcpy(str,"uncule");
cout<<endl<<name1<<" is "<<name2<<"'s "<<str;
break;
case 2:
char str1[50];
strcpy(str1,"daughter");
if(ptr2->g)
strcpy(str1,"son");
ptr2 = ptr2->fc->fc;
while(ptr2!=NULL)
{
if(ptr2==ptr1)
{
cout<<endl<<name1<<" is grand "<<str1<<" of "<<name2;
return;
}
ptr2 = ptr2->ns;
}
break;
case -2:
char str2[50];
strcpy(str2,"mother");
if(ptr1->g)
strcpy(str2,"father");
ptr1 = ptr1->fc->fc;
while(ptr1!=NULL)
{
if(ptr1==ptr2)
{
cout<<endl<<name1<<" is grand "<<str2<<" of "<<name2;
return;
}
ptr1 = ptr1->ns;
}
break;
default:
cout<<"Too far relationship";
break;
}
}
node* familyTree::search(char s[50])
{
/*
Searches for the given name from start to it's sibilings and their children
Returns the pointer of node where the name is present
*/
node *ptr = start;
if(strcmp(ptr->name,s)==0)
return ptr;
else if(traverseRight(start,s)!=NULL)
return traverseRight(start,s);
else if(traverseDown(start,s)!=NULL)
return traverseDown(start,s);
else
{
return NULL;
cout<<"***Not found***8";
}
}
node* familyTree::traverseDown(node* ptr, char s[50])
{
// Searches all the children
ptr = ptr->fc;
while(ptr!=NULL)
{
if( strcmp(ptr->name,s)==0 )
return ptr;
else if(traverseRight(ptr,s)!=NULL)
return traverseRight(ptr,s);
else
ptr = ptr->fc;
}
return NULL;
}
node* familyTree::traverseRight(node* ptr, char s[50])
{
// Searches all the sibilings
ptr = ptr->ns;
while(ptr!=NULL)
{
if(strcmp(ptr->name,s)==0)
return ptr;
else if (traverseDown(ptr,s)!=NULL)
return traverseDown(ptr,s);
else
ptr = ptr->ns;
}
return NULL;
}
void familyTree::addNew()
{
node* temp = new node;
temp->getData();
if(start == NULL)
{
start = temp;
temp->x=0;
}
else
{
cout<<"\nEnter any relation's name: ";
char name[50];
cin>>name;
cout<<"\n1. Child\n2. Sibiling\n\n"<< temp->name <<" is ____ to "<<name<<" : ";
int opt;
cin>>opt;
switch(opt)
{
case 1:
addChild(search(name),temp);
break;
case 2:
addSib(search(name),temp);
break;
}
}
cout<<"\nPerson sucessfully added.\n";
}
void familyTree::addSib(node* a,node* b)
{
// b is added as sibling of a
while(a->ns!=NULL)
a=a->ns;
a->ns = b;
b->x = a->x;
}
void familyTree::addChild(node* a,node* b)
{
// b is added as child as a (or) b is added as sibiling to last child of a
if(a->fc==NULL)
a->fc = b;
else
addSib(a->fc,b);
b->x = a->x+1;
}
void connect(familyTree *T1, familyTree *T2)
{
char name[50];
int opt;
int x;
cout<<"Name of person in 1st tree to merge: ";
cin>>name;
cout<<T2->start->name<<" is __ to "<<name<<"\n1. Child 2. Sibling - ";;
cin>>opt;
node *ptr = T1->search(name);
switch(opt)
{
case 1:
T1->addChild(ptr,T2->start);
x = ptr->x + 1;
break;
case 2:
T1->addSib(ptr,T2->start);
x = ptr->x;
break;
}
T2->updateX(T2->start,x);
T2->destroy(T2->start);
cout<<"\nMerged\n";
}
int main()
{
familyTree T[100];
int opt,n,n1,n2;
char c,name[50];
cout<<"\nEnter the family tree number = ";
cin>>n;
while(1)
{
#ifdef WINDOWS
system("cls");
#endif // WINDOWS
#ifdef LINUX
system("clear");
#endif // LINUX
cout<<"\n\n\n\tFamily tree no = "<<n<<"\n\n\t1. Add new person\n\t2. Find relationship b/w two persons\n\t3. Search\n\t4. Destroy\n\t5. Display\n\t6. Change family tree\n\t7. Connect two family trees\n\t8. Exit\n\n\tEnter your choice = ";
cin>>opt;
cout<<endl;
switch(opt)
{
default:
cout<<"Invalid input";
break;
case 1:
T[n].addNew();
break;
case 2:
T[n].find();
break;
case 3:
cout<<"Enter name of person to search: ";
cin>>name;
T[n].show(T[n].search(name));
break;
case 4:
T[n].destroy(T[n].start);
cout<<"Tree "<<n<<" has been destroyed sucessfully";
break;
case 5:
T[n].display(T[n].start);
break;
case 6:
cout<<"Enter family tree number: ";
cin>>n;
break;
case 7:
cout<<"Merge __ to __ \n";
cin>>n2>>n1;
connect(&T[n1],&T[n2]);
break;
case 8:
return 0;
}
cout<<"\n\nPress any key to continue.....";
cin>>c;
}
}

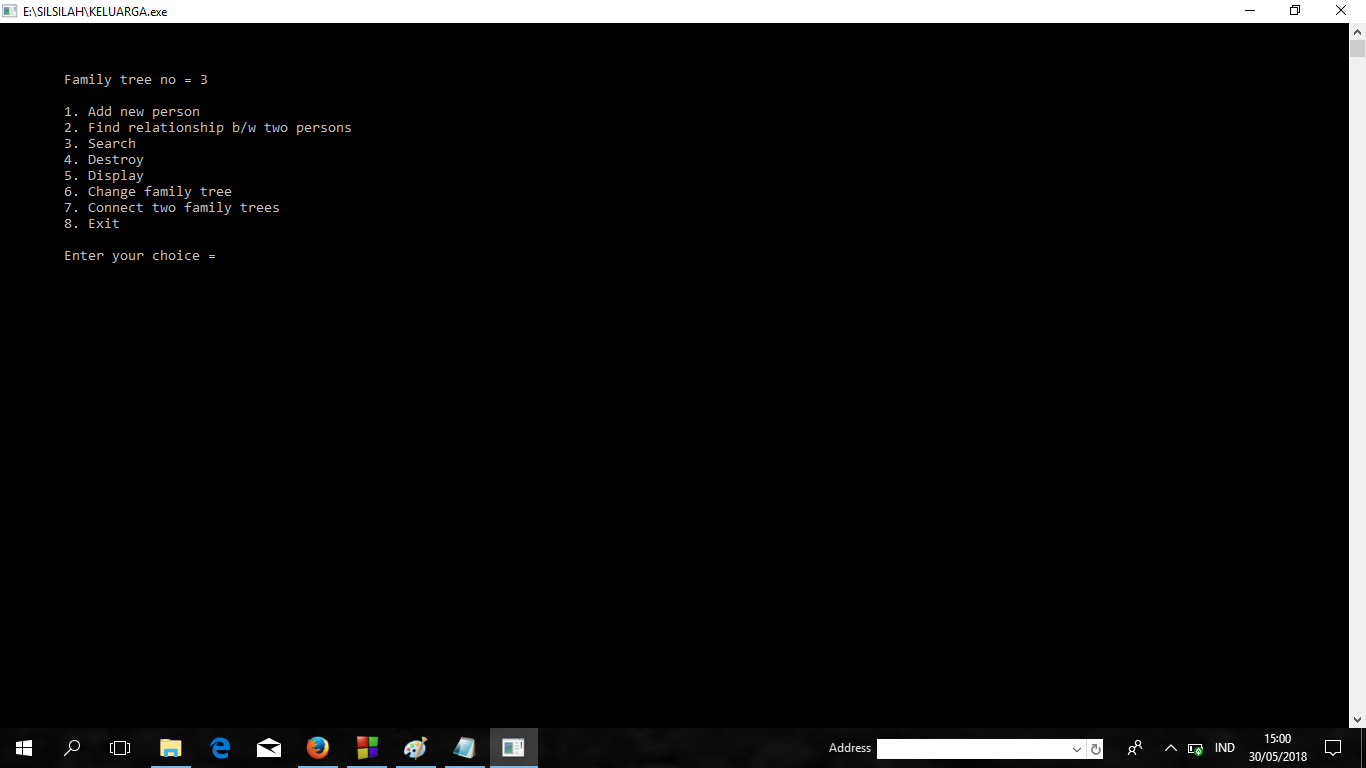

jika dijalankan kurang lebih seperti ini outputnya yaa....
referensi saya:
Modul praktikum struktur data Pendidikan teknik informatika Universitas Muhammadiyah Surakarta
